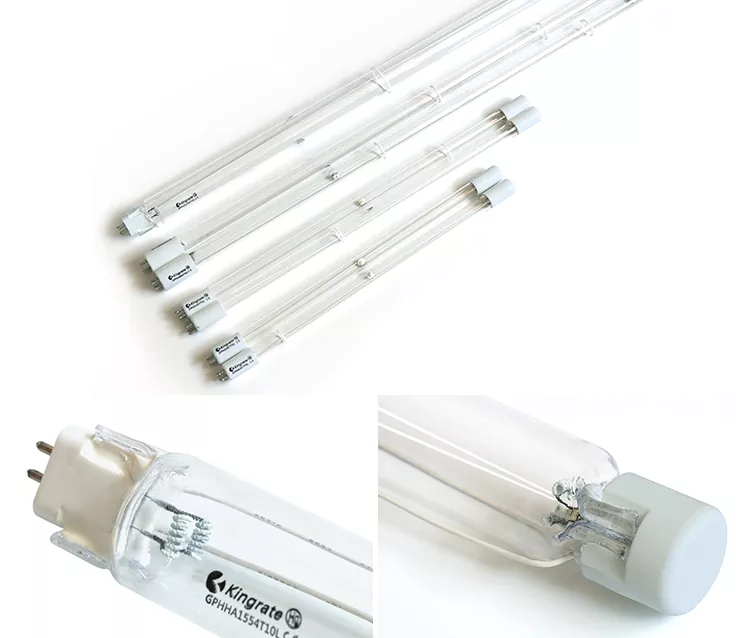

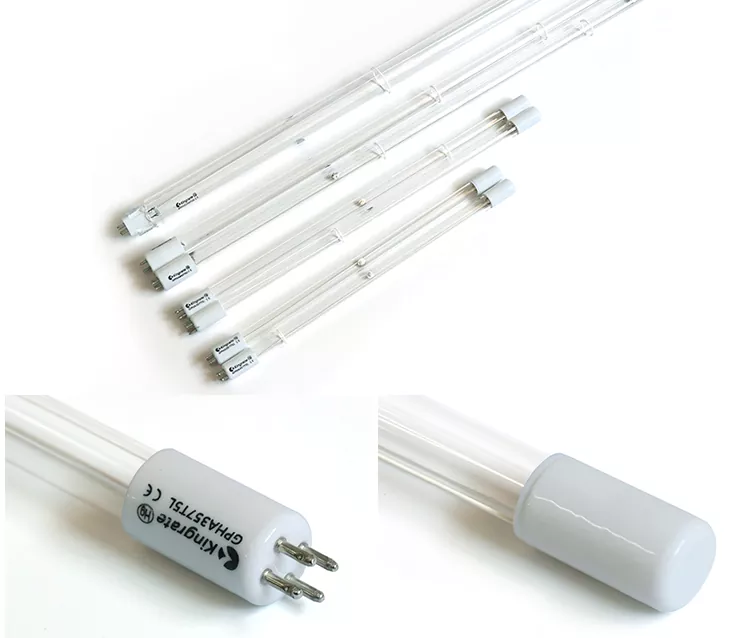

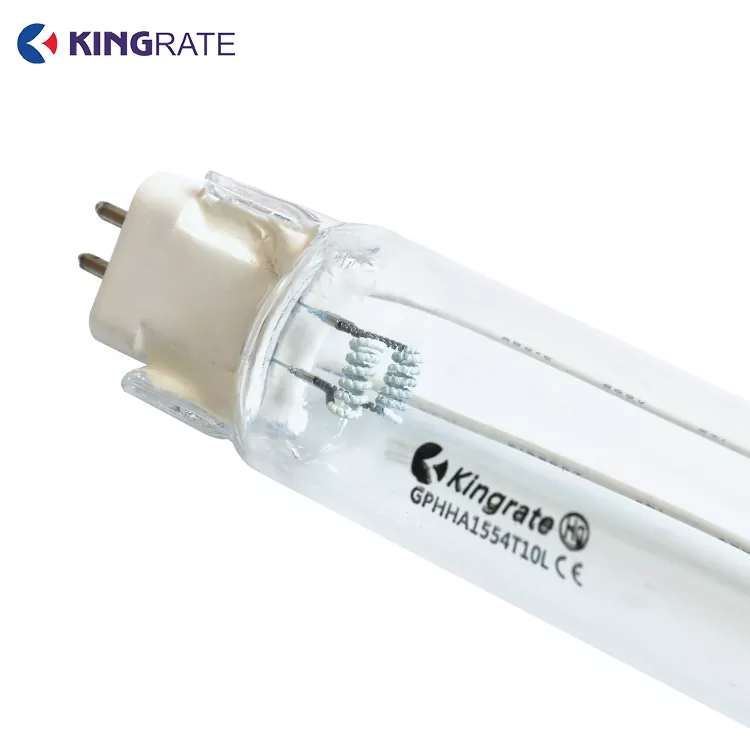

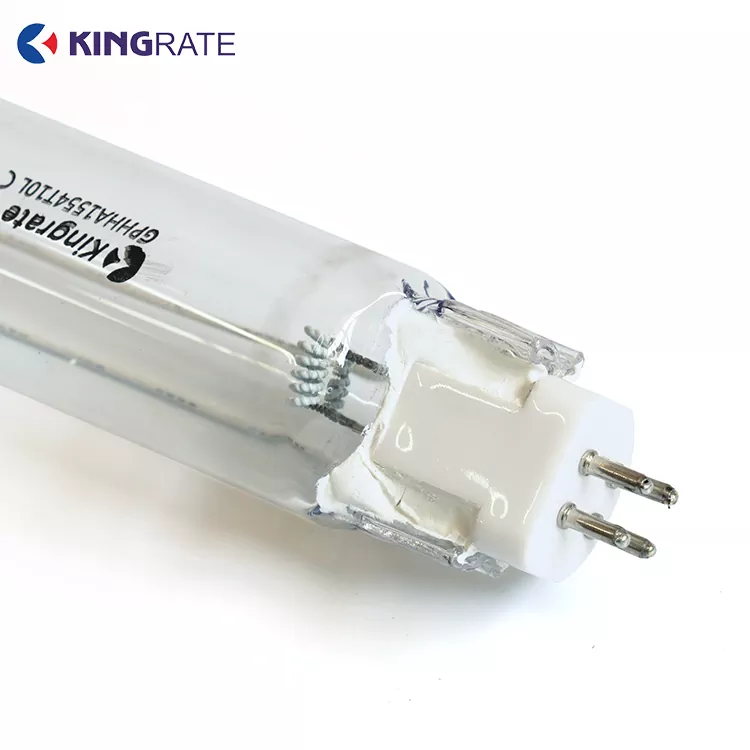

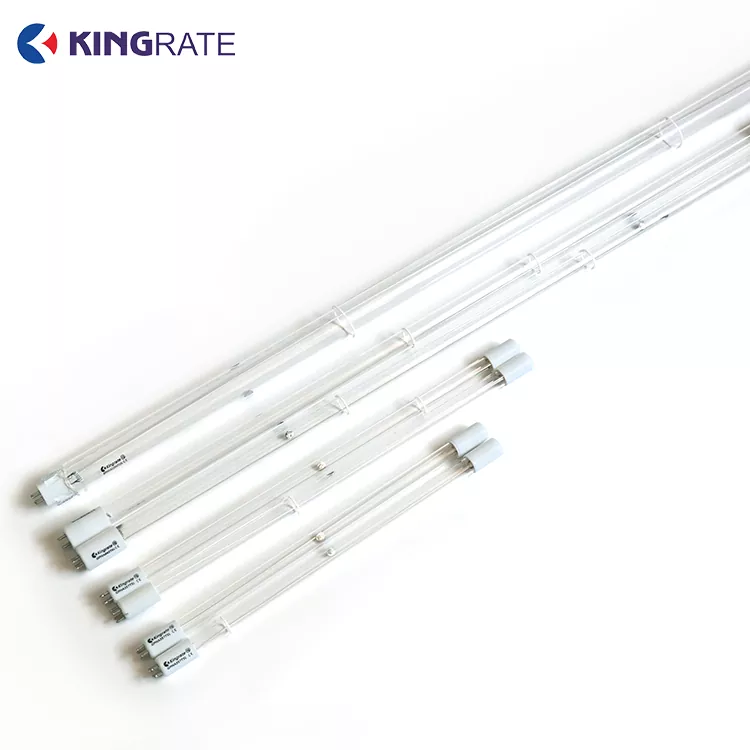

Amalgam UV Lamp

To reduce overall capital expenditure and minimize the physical footprint of industrial water treatment systems, buying a high-intensity Amalgam UV Lamp from China factory suppliers provides a dependable solution. Kingrate manufactures these heavy-duty lamps using an interior protective film layer that preserves quartz clarity against solarization. This technology delivers up to three times the UVC output of standard lamps of equivalent length, helping international environmental utilities meet rigorous microbiological discharge regulations.

Direct Resolution of Client Pain Points

Municipal wastewater systems and industrial cooling loops often experience significant changes in water temperature over the course of a year. Standard low-pressure liquid mercury lamps are highly sensitive to these fluctuations: if the water gets too cold, the internal mercury vapor pressure drops, which can cut UVC output by up to 50% and leave the water under-treated.

The Amalgam UV Lamp directly resolves this performance issue. By securing the mercury within a stable, solid alloy pellet, the lamp regulates its own internal vapor pressure across a broad temperature range (-20°C to 50°C). This keeps the UVC output steady and reliable through seasonal temperature changes, allowing facility managers to maintain consistent disinfection doses without over-sizing their lamp racks.

Operation Calibration & Installation Specifications

Core Application Scenarios

• Municipal Wastewater Disinfection: Amalgam UV Lamp can be installed in large effluent channels to destroy chlorine-resistant pathogens like Cryptosporidium and Giardia before water discharge.

• Industrial Cooling Towers: Positioned in high-volume water loops to prevent Legionella colonies and biofilm buildup on heat exchangers.

• Large Air Purification Modules: Deployed in commercial food processing and packaging plants to sterilize air currents and maintain sterile manufacturing conditions.

Standard Product Parameters

Supplier Advantage & Custom Process

Engineered Material Coating Advantages

Standard Amalgam UV Lamps can turn a cloudy gray color after 3,000 to 4,000 hours of operation because mercury ions migrate into the quartz glass structure. This solarization effect degrades the lamp's ability to transmit UVC light. Kingrate prevents this issue by coating the inner wall of the quartz tube with a specialized nanostructured protective barrier before gas filling. This barrier prevents mercury migration, allowing the lamp to maintain an 85% UVC output rating even after 12,000 hours of continuous service.

Factory Customization and Process Architecture

1. Alloy Matrix Calibration: The mercury alloy composition is adjusted based on the client's target water temperature profile to maximize efficiency.

2. Automated Internal Coating: Automated spray lines apply a uniform nanostructured barrier film down the entire length of the quartz tube.

3. High-Vacuum Degassing: Tubes are baked under an ultra-high vacuum to remove any residual moisture or impurities before final sealing.

Technical FAQ

Q1: Why are amalgam lamps preferred over standard low-pressure lamps for large-scale water treatment?

A: Amalgam UV Lamps provide much higher UVC output per unit length, allowing system designers to use fewer lamps to achieve the target disinfection dose. This reduces the number of quartz sleeves, ballasts, and seals required, which simplifies system architecture and significantly cuts down on long-term maintenance labor costs.

Q2: What is the typical warm-up time required for an amalgam lamp to reach full UVC intensity?

A: Because the mercury is bound in a solid alloy pellet, an Amalgam UV Lamp typically requires 3 to 5 minutes to reach full operating temperature and stable UVC output from a cold start. This is slightly longer than liquid mercury lamps, but it can be managed by using a low-power standby mode during periods of low water flow.

Q3: How does the 1-year warranty handle premature failures in high-fouling industrial water environments?

A: Kingrate's 1-year warranty covers all structural, material, and electrical defects under normal operating conditions. If Amalgam UV Lamp failure is caused by manufacturing flaws, we provide free replacement components. However, regular maintenance schedules must be followed to prevent external mineral fouling or scale buildup, which can cause heat retention and stress the lamp housing.

Customization Capability

KINGRATE supports OEM/ODM customization across the following dimensions to meet the specific requirements of various application scenarios：

Wavelength Customization: Available in 185nm, 222nm, 254nm, and other wavelengths, suitable for air disinfection, water treatment, surface sterilization, VOC degradation, and more.

Power Customization: Lamp power can be adjusted according to customer requirements, ranging from low power (≤5W) to industrial-grade high power.

Dimension & Structure Customization: Support for custom tube diameters, lengths, single-ended/double-ended configurations, straight-tube/U-tube structures, and more.

Socket Type Customization: Different socket specifications can be configured based on equipment interface requirements.

Quartz Glass & Process Customization: High-transmittance quartz glass combined with various manufacturing processes（e.g., solid mercury technology） to meet differentiated performance requirements such as lifespan and light decay.

Accessory Customization: Simultaneous customization of quartz sleeves, electronic ballasts, lamp sockets, and other related accessories.

Branding & Packaging Customization: Support for OEM private labeling, ODM appearance design, and customized packaging solutions.

In addition, we offer one-stop services from concept design to batch delivery. All custom products enjoy the same international certifications (CE, RoHS, REACH, FCC, ISO9001) as our standard products.
