Traditional disinfection lamps often have short service life, unstable ultraviolet output and complicated installation problems. KINGRATE T5 2 Pins Double Ended UV Lamp adopts high-transmittance quartz tube and amalgam process, concentrating 254nm germicidal wavelength with up to 99.9% sterilization efficiency. Guangdong Kingrate Optoelectronic Technology Co., Ltd., a national high-tech enterprise with 20 years UV light R&D experience, independently develops and produces this double-ended UV tube, passing CE, RoHS and other international certifications.
T5 2 Pins Double Ended UV Lamp is a mature UVC germicidal tube independently developed by KINGRATE, specially designed for air purification, surface disinfection and small water treatment equipment. The double-end metal pin design matches universal T5 lamp holders without complicated wiring. The tube focuses on stable 254nm ultraviolet output, energy-saving performance and long service life. KINGRATE provides ozone-free and ozone-generating two versions, supporting OEM & ODM customized power and length to meet different household, medical and commercial disinfection demands.
| Parameter Item | Specific Details |

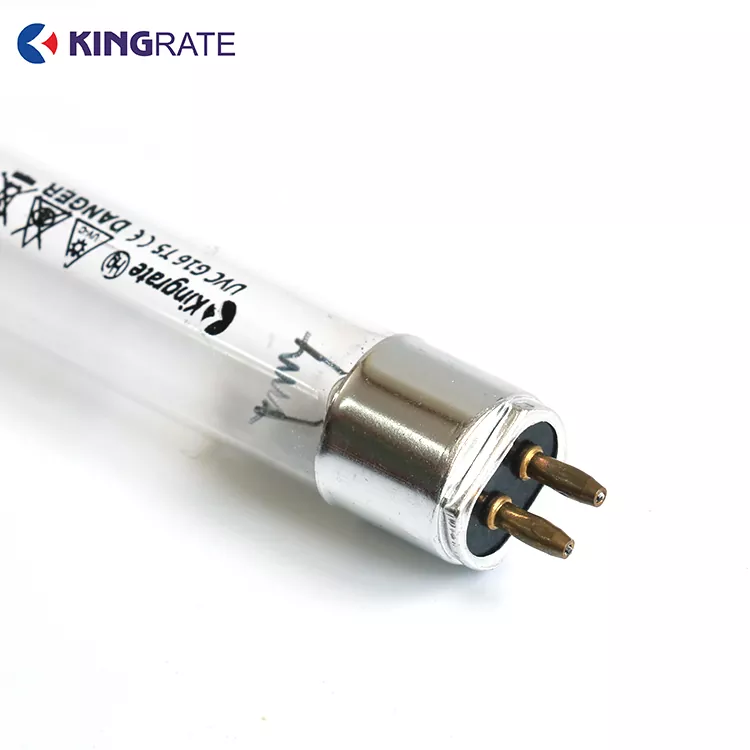

| Full Product Name | T5 2 Pins Double Ended UV Lamp |
| Standard Tube Diameter | 16mm (T5 standard size) |
| Optional Length | 600mm / 1600mm |
| Optional Power | 8W, 14W, 21W |
| Core Germicidal Wavelength | 254nm UVC |
| Tube Material | High-transmittance quartz glass (light transmittance ≥90%) |
| Operating Voltage | AC 120V-240V, 50/60Hz |
| Working Temperature Range | -20℃ ~ 50℃ |
| Average Service Life | 8000 hours |
| Optional Version | Ozone type / Ozone-free type |
| Main Certifications | CE, RoHS, REACH, FCC, ISO9001 |
| Matching Accessories | Standard T5 lamp holder, supporting electronic ballast |
1. Universal Double-End Pin Structure
Two-side metal pins fit all common T5 lamp brackets, installation and replacement are simple, no complex circuit transformation required for existing disinfection equipment.
2. Efficient 254nm Sterilization Effect
254nm ultraviolet destroys the DNA structure of bacteria, viruses and mold, reaching 99.9% sterilization rate, effectively removing influenza virus and odor sources in air.
3. Energy Saving & Long Service Life
Compared with ordinary UV tubes, it saves over 30% power consumption, standard service life reaches 8000 hours, reducing frequent replacement cost.
4. High-Quality Quartz & Amalgam Technology
Quartz tube with over 90% light transmittance, high temperature and corrosion resistant; amalgam design realizes fast cold start without long preheating waiting.
5. Safe Anti-Leakage & Optional Ozone-Free
Anti-UV coating on tube surface avoids ultraviolet leakage after breakage; ozone-free model is suitable for closed spaces such as bedrooms and offices.
• Air purifier matching: Kill mold, influenza virus floating in indoor air
• Surface disinfection: Kitchen countertops, toys, office supplies (irradiation distance ≤1m, 15-30 minutes each time)
• Indoor closed space sterilization: Bedrooms, study rooms without ozone residue
• Hospital ward, operating room air disinfection, eliminate drug-resistant bacteria
• Small water treatment equipment: Household water purifiers, fish tank and aquaculture water sterilization
• Shopping mall, hotel public area regular air disinfection
• Fresh air system supporting disinfection components
Guangdong Kingrate Optoelectronic Technology Co., Ltd. is a national high-tech & specialized new enterprise founded in 2014, located in Foshan Nanhai District:
1. R&D Experience: Core team has over 20 years special light source research experience, owns multiple invention, utility model and appearance patents for UV lamps
2. Production Scale: Modern standardized factory with full automatic production lines, equipped with filament machine, welding machine, aging test equipment to realize mass stable output
3. Product Line Coverage: Supply 254/185nm germicidal tubes, submersible UV lamps, 222nm excimer lamps and matching quartz sleeves, ballasts; accept OEM/ODM customization
4. Qualification System: Pass ISO9001, CE, RoHS, REACH, FCC global standard certifications
5. Global Market: Nearly 20 years foreign trade export experience, products sold to many countries around the world, widely recognized by water treatment and air disinfection merchants
6. Technical Advantage: After long-term use, UV light decay of KINGRATE UV lamp is less than 30%, reaching international mainstream lamp quality level
1. Do not look directly at the lit UV tube; evacuate people and pets during disinfection, ultraviolet rays damage human eyes and skin.
2. Recommended installation height is 2 to 2.5 meters above the ground to achieve uniform full-space irradiation.
3. Ozone model needs sufficient ventilation after use to avoid respiratory discomfort caused by ozone accumulation.
1. Wipe tube surface with alcohol every month to remove dust and guarantee stable ultraviolet transmittance.
2. Replace the tube timely when the tube wall turns black or brightness obviously drops, to ensure sterilization efficiency.
A The core germicidal band is 254nm UVC, which has the strongest killing effect on various microorganisms.
A Yes, we provide ozone-free tube options, suitable for bedrooms, offices and other confined environments without pungent ozone smell.
A The standard service life reaches 8000 hours, with lower light decay than ordinary market tubes.
A Yes, we provide OEM and ODM service, adjust size, power and tube formula according customer equipment demands.
A All products pass CE, RoHS, REACH, FCC and ISO9001 complete certification documents for customs clearance.
A It can be installed on air purifiers, fresh air systems, small water purifiers, medical disinfection equipment with standard T5 lamp holders.
T5 2 Pins Double Ended UV Lamp is a cost-effective general germicidal tube for household and commercial disinfection scenarios. Supported by KINGRATE’s 20 years UV light source R&D accumulation, automatic standardized production line and complete international certifications, we can supply spot standard tubes and customized OEM UV lamp solutions for air purifier factories, medical equipment suppliers and water treatment engineering merchants. If you need detailed technical parameter sheets, sample testing arrangements and bulk factory quotations, please feel free to contact us. Our professional UV light technical team will match suitable T5 double-ended UV lamp products according to your disinfection equipment and usage environment.
