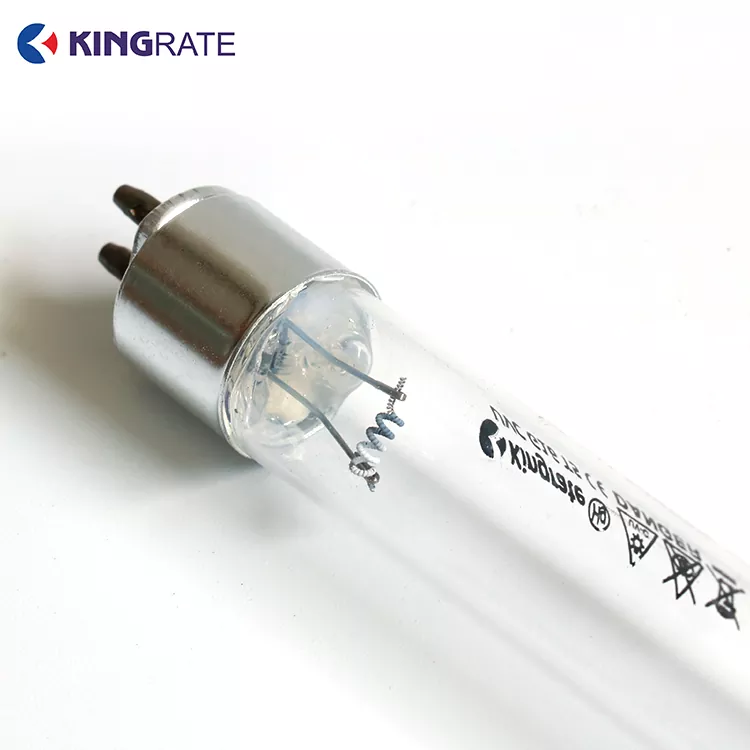

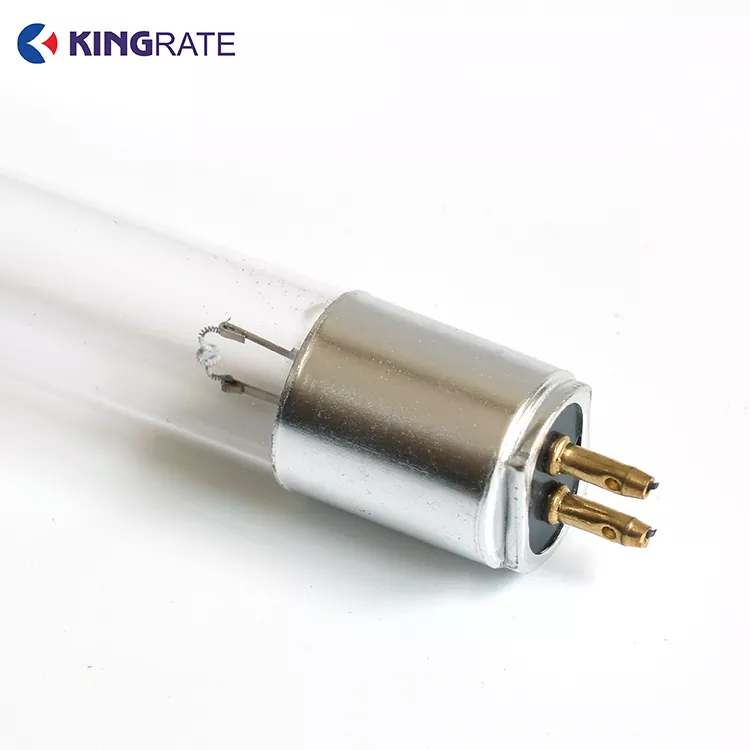

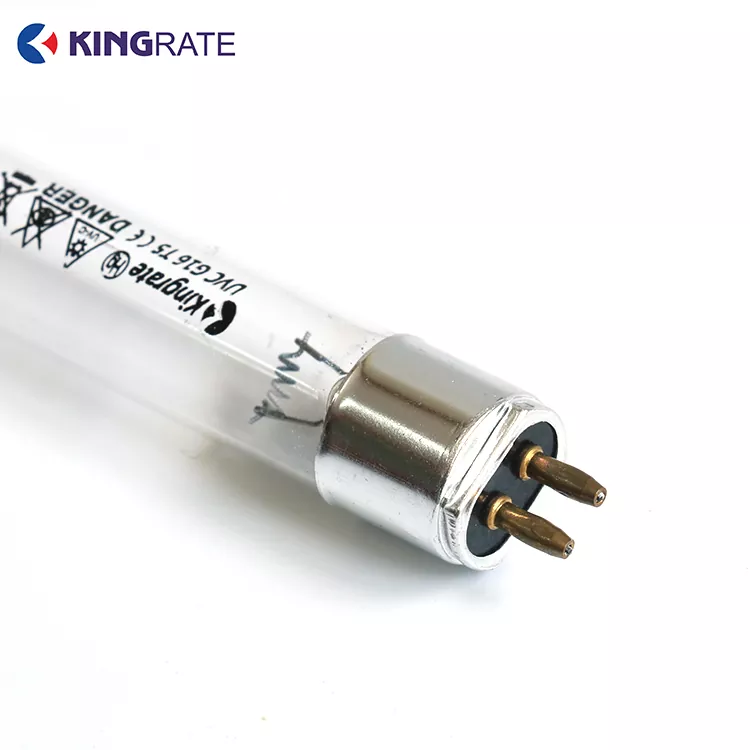

To build compact, energy-efficient air filtration systems, purchasing a wholesale T5 2 Pins Double Ended UV Lamp from professional China manufacturers ensures reliable performance. Kingrate utilizes premium quartz glass and advanced amalgam technology to build these space-saving lamps, achieving a 99.9% sterilization rate across a dependable 8,000-hour operational life. This low-power, high-output configuration carries CE and RoHS certifications, helping global appliance brands meet strict safety and environmental standards.
• High-Efficiency Electron Emissive Coating: Cheap lamps often burn out early if cycled on and off frequently, as each start strains the filaments. Kingrate coats its cathodes with a specialized electron-emissive powder that protects the filament during ignition. This design maintains a stable arc and extends the lamp's life to a reliable 8,000 hours, even in automated systems that cycle on and off frequently.
• Premium Quartz Tube Body: We use high-purity quartz glass with a UVC transmittance rate of over 90%. This high clarity ensures maximum germicidal energy is delivered to the target area while resisting the glass degradation that shortens the life of cheaper alternatives.
Air purification: Use with air conditioners or air purifiers to effectively kill influenza viruses, mold, etc. in the air.
Surface disinfection of objects: Close-range irradiation of kitchen countertops, office supplies, toys, etc. (recommended distance ≤1 meter, time 15-30 minutes).
Hospital disinfection: T5 2 Pins Double Ended UV Lamp is suitable for spaces such as wards and operating rooms to quickly kill drug-resistant bacteria in the air.
Water treatment: Use with ultraviolet disinfection equipment for small water purifiers, fish tanks, etc. to inhibit bacterial growth in water.
Avoid looking directly at the light source: Ultraviolet rays are harmful to the eyes and skin. Make sure that no one or pets are present when using it.
Installation height: It is recommended to be 2-2.5 meters from the ground to ensure uniform irradiation.
Regular cleaning: Wipe the dust on the surface of the lamp with alcohol every month to maintain light transmittance.
Replacement tips: When the color of the lamp turns black or the brightness decreases significantly, it needs to be replaced in time.
Our compact T5 2 Pins Double Ended UV Lamps are engineered to deliver high output with minimal power draw:
• Outer Glass Tube Diameter: Ultra-slim 16mm standard T5 profile

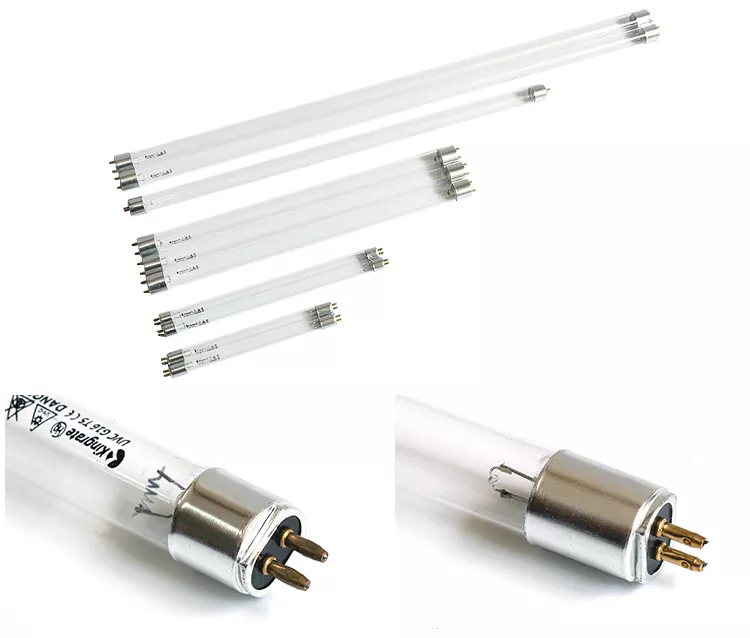

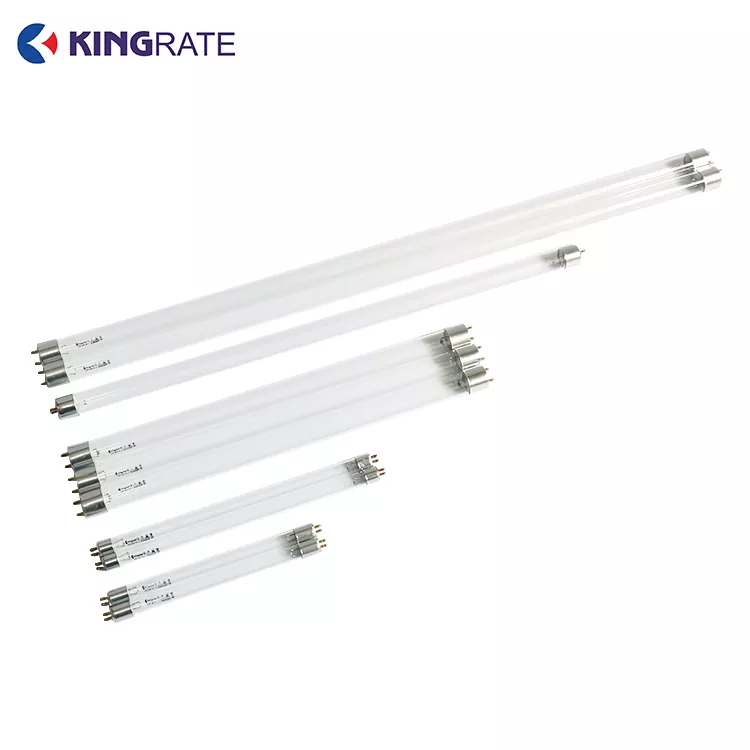

• Available Length Options: Standard 600mm and 1600mm layouts (custom options available)
• Power Efficiency Profile: Consumes up to 30% less energy compared to equivalent T8 configurations
• Terminal Interface Base: Standard Miniature Double-Ended Double-Pin layout
• Target Operating Wavelength: Focused at 254nm (Ozone-Free configuration)
A: The T5 2 Pins Double Ended UV Lamp connects to standard miniature bi-pin sockets. During installation, ensure the pins are fully inserted into the socket and rotated 90 degrees to lock them in place. Loose electrical connections can cause arcing, which damages the lamp base and leads to premature ballast failure.
A: Yes, but cold air moving over the lamp can lower the internal mercury vapor pressure, which may reduce UVC output. For cold-storage applications, we recommend housing the lamp inside a protective quartz sleeve to help maintain its optimal operating temperature.
A: Yes, Kingrate produces an ozone-free version of this T5 2 Pins Double Ended UV Lamp that uses specialized quartz glass to filter out the 185nm wavelength. This prevents ozone generation, making it safe for use in small, enclosed rooms like offices or bedrooms without requiring extra ventilation.
We offer a warranty against manufacturing defects in materials and workmanship. Should any quality issue arise within this period, replacement or compensation will be provided after quality verification according to warranty terms. Our quality team responds to all warranty claims within 24 hours.
1. Warranty Claim Process:
1) Submit photos and batch number
2) Engineering review within 24 hours
3) Root cause analysis
4) Replacement shipment
2. Warranty Covers:
Material defects
Manufacturing defects
3. Excludes:
Incorrect installation
Accident damage
Unauthorized modification
