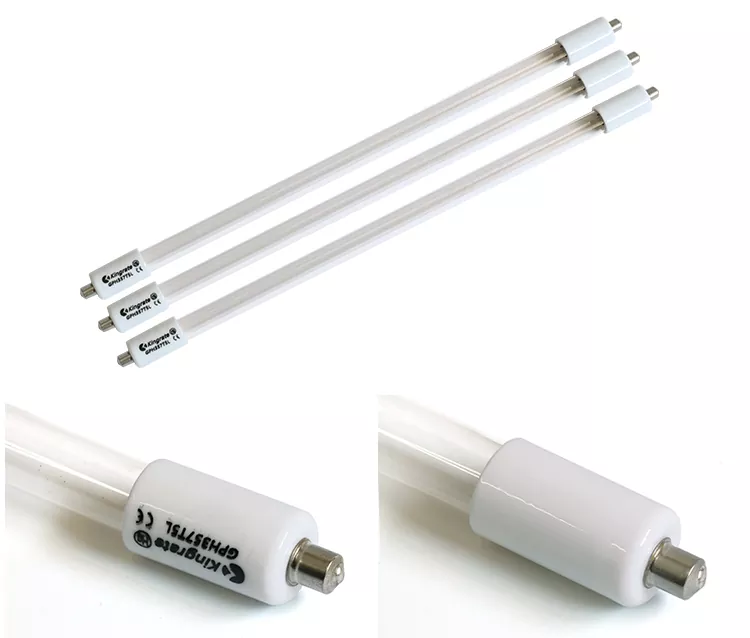

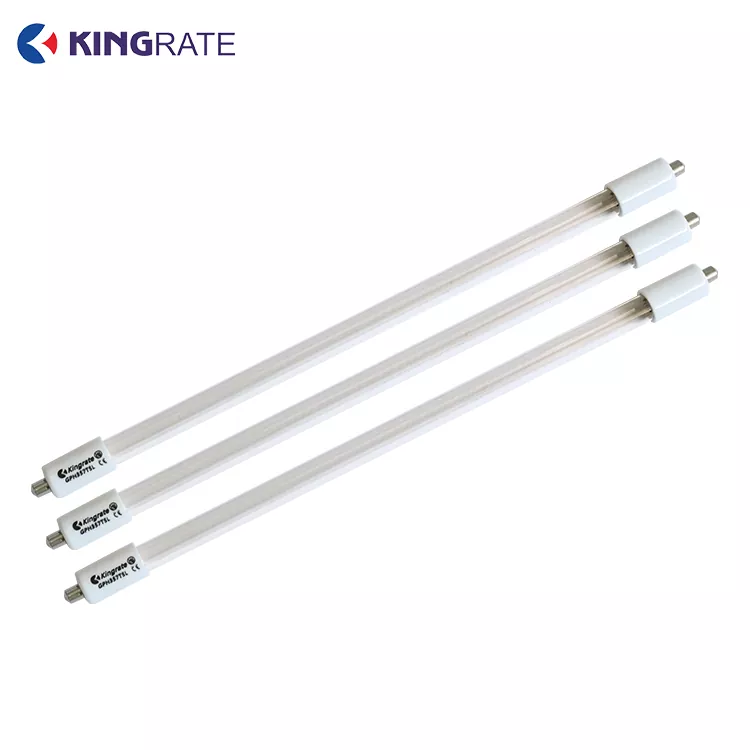

When designing scalable disinfection systems for public infrastructure, buying a One Pin Double Ended UV Lamp from an experienced China factory optimizes installation speed and electrical safety. Kingrate’s automated assembly lines use high-purity quartz glass and specialized filament positioning to construct these high-efficiency lamps. The standard single-pin layout simplifies structural wiring inside large containment vessels, allowing international commercial contractors to meet strict green-building air and water hygiene standards.
Single-Pin Instant-Start Circuit Design: The One Pin Double Ended UV Lamp design at each end of the tube is engineered for high-voltage instant-start ignition circuits. Unlike bi-pin configurations requiring preheating cycles, this design strikes the internal mercury arc instantly via high initial voltage surge, eliminating complex starter components, simplifying wiring, and reducing industrial electrical failure points.
High Anti-Vibration Structural Stability: The linear double-ended anchored structure effectively resists transverse vibration from high-velocity air and water flow. It reduces mechanical stress at quartz-metal seals, avoids micro-fractures, and adapts to long-term continuous operation in demanding fluid environments.
High Energy-Saving Conversion Performance: Low electrical impedance design optimizes electric energy conversion, converts most power into 253.7nm UVC photons rather than waste heat, reduces facility power consumption, and fully complies with international hazardous substance restriction regulations.
Our One Pin Double Ended UV Lamps are built for high-stress continuous duty cycles:
• Structural Layout: Double-Ended Linear Layout, securely anchored at both ends
• Terminal Connector Interface: Standard Single-Pin (Instant-Start Slimline Classification)
• Ignition Circuit Profile: High-Voltage Instant-Start (eliminates external starter components)
• Average Service Lifespan: 8,000 Hours under continuous structural flow states
• Vacuum Integrity Protection: Heavy-duty molybdenum foil seals matched to quartz thermal expansion rates
• Resilient Molybdenum Seals: Low-cost manufacturers use cheap alloy wires that expand at different rates than the glass when heated, which can crack the seals. Kingrate uses imported molybdenum foil seals that match the thermal expansion of quartz, ensuring a tight vacuum seal even through repeated hot/cold cycles.
• Balanced Filament Alignment: Our automated filament positioning machinery centers the cathodes precisely along the tube's axis. This preventing the arc from drifting toward the glass wall, which can cause uneven heating and premature tube failure.
Before final packaging and shipment, every One Pin Double Ended UV Lamp production batch is subjected to a comprehensive quality control protocol:
• High-Pressure Submersion Leak Testing: Verifies the integrity of the end seals against moisture intrusion.
• High-Voltage Strike Endurance Run: Each lamp is cycled multiple times to ensure rapid arc ignition without ignition lag.
• Spectral Purity Assessment: Confirms that germicidal output remains concentrated at the target wavelength.
A: One Pin Double Ended UV Lamps allow for easier wiring layouts across long industrial chambers, as power feeds into one end and returns from the other. This configuration is highly stable against physical vibrations in high-velocity fluid flows, whereas 4-pin configurations concentrate all connections on one terminal, which can lead to single-ended wire stress in long, heavy lamp formats.
A: Standard single-pin instant-start lamps are not recommended for deep dimming applications, as reducing the arc current below design parameters without a separate cathode heating circuit can cause rapid filament erosion. For variable-flow systems, we recommend using a multi-bank staging approach instead of individual lamp dimming.
A: Kingrate uses imported molybdenum foil seals with a thermal expansion coefficient that matches the quartz glass matrix. This advanced material selection ensures that when the lamp moves between cold ambient storage temperatures (down to 2°C) and hot operating states, the seal expands uniformly, preventing air leaks.
KINGRATE's OEM/ODM customization services follow a standardized five-step process, ensuring efficient execution and quality control for every custom project：
Requirement Discussion: Fully communicate with customers regarding application scenarios, performance specifications, and delivery requirements to clarify the customization direction.
Specification Confirmation: Develop detailed technical specifications based on requirements, covering parameters such as wavelength, power output, dimensions, socket types, and materials.
Sample Production & Testing: Produce custom samples and conduct comprehensive testing including UV output intensity, lifespan, and airtightness to verify that product performance meets design requirements.
Batch Production: After sample approval, proceed with large-scale production on automated lines to ensure quality consistency between custom products and approved samples.
On-Time Delivery: Complete production and arrange shipment according to the agreed lead time, with dedicated personnel following up throughout the process to ensure smooth delivery.
With over 20 years of UV product export experience and thorough knowledge of market access standards across different countries, our custom products can be directly sold to global markets including North America, Europe, and Southeast Asia.
