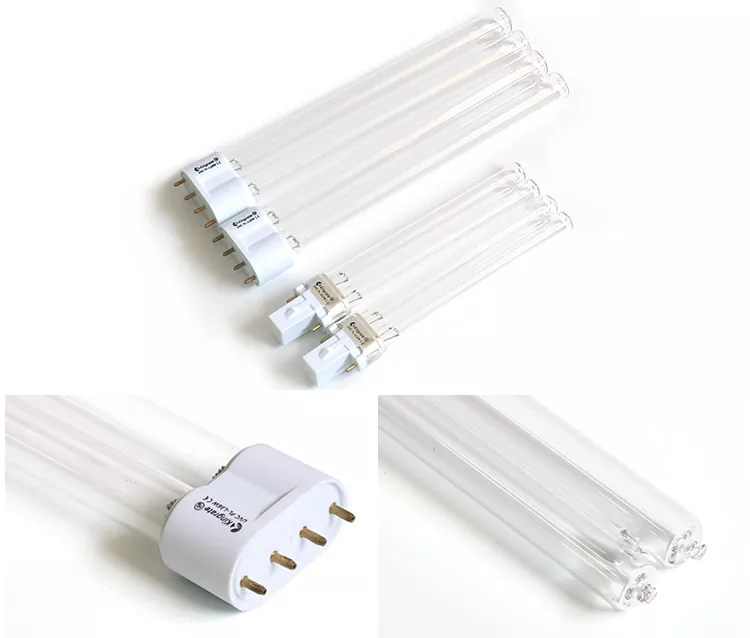

If you are designing compact consumer or commercial appliance lines, sourcing from direct China PL-L Series H-Shaped UV Lamp PL-L24W suppliers ensures a perfect blend of price and performance. Kingrate's 317mm lamp operates on a stable 60V path via a standard 2G11 base, reducing power consumption by 40% compared to traditional high-power methods.
Equipping large industrial high-wattage UV lamps for small appliances leads to excessive energy waste and overheating risks. PL-L Series H-Shaped UV Lamp PL-L24W adopts energy-saving 24W low-power configuration, specially developed for non-stop background disinfection. It consumes minimal electricity while outputting steady 90μW/cm² UVC dose, cutting long-term equipment operating costs and realizing all-day biological protection.
• Under-Sink Household RO Water Purifiers: Installed at the final filtration stage to inhibit bacterial biofilm reproduction in water storage tanks.
• Wall-Mounted Mini Air Sanitizers for Waiting Rooms & Restrooms: Continuously eliminates airborne odor-causing bacteria and influenza viruses for small closed spaces.
• Commercial Bakery & Deli Food Display Cabinets: Mounted inside fresh food display cases to restrain surface mold growth and extend shelf life of unpackaged food.
| Engineering Parameter | Certified Specification | Operational Explanation |
| Power & Circuit Rating | 24W power draw, stable 60V operating current path | Ultra energy-saving for household and small commercial appliances |
| Sizing Standard | Single-ended 4-pin 2G11 universal base, total tube length 317mm | Balanced length for mini water/air disinfection equipment |
| UVC Output Fluence | 90μW/cm², pure 253.7nm ozone-free germicidal spectrum | Gentle but effective localized sterilization without ozone hazards |
|
Feature/Application |
Description |
|
Efficient Sterilization |

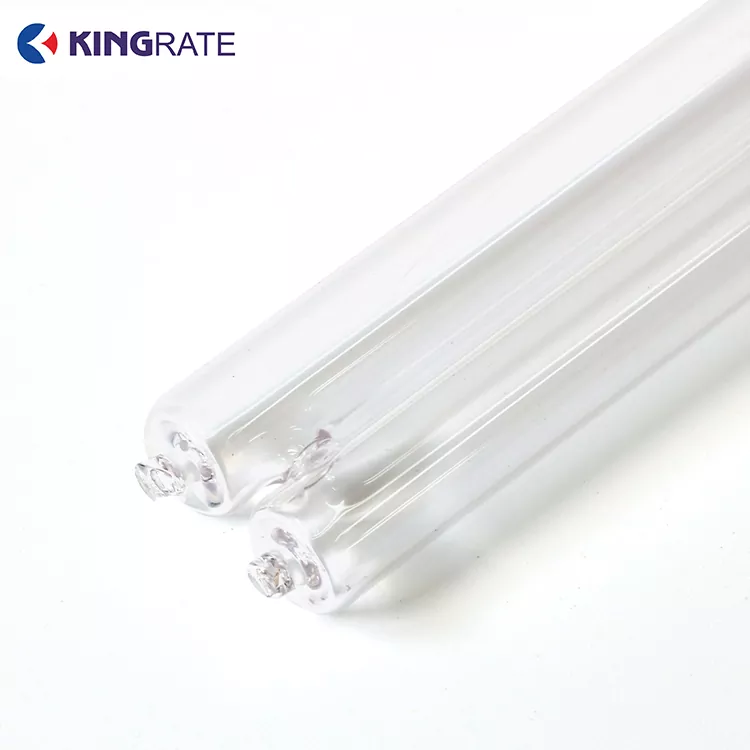

Made of high-quality quartz glass, offering high UV output to effectively kill bacteria and viruses. |
|
Long Life |
With a service life of up to 9000 hours, reducing replacement frequency and maintenance costs. |
|
Energy Saving and Environmental Protection |
Low energy consumption, no toxic side effects, and meets environmental requirements. |
|
Applications: Air Disinfection |
Suitable for air disinfection in air disinfectors, hospitals, and other places. |
|
Applications: Water Treatment |
Used in water dispensers, aquarium sterilizers, and other equipment to ensure water quality. |
|
Applications: Surface Disinfection |
Suitable for UV disinfection of various instruments and equipment. |
The UVC PL-L Series H-Shaped UV Lamp PL-L24W, with its high sterilization efficiency, long lifespan, and energy-saving and environmentally friendly features, is an ideal sterilization solution for various industries.
A: Yes, provided you utilize a specialized DC-to-AC electronic inverter ballast that converts the low-voltage DC source into the 60V AC operating threshold required by the lamp.
A: Incompatible ballasts can supply incorrect striking currents, leading to filament overheating, rapid tube blackening, and a premature drop in the lamp's 9,000-hour lifespan.
A: No. Because it uses an ozone-free quartz formulation, it does not produce any ozone gas, so any slight smell is simply airborne dust particles being carbonized on the hot glass outer surface.
A: Safety gear is mandatory when the lamp is powered on and exposed outside the equipment housing. Only operate without goggles and protective clothing after fully cutting off power. Direct UVC exposure causes corneal injury and erythema skin burns.
