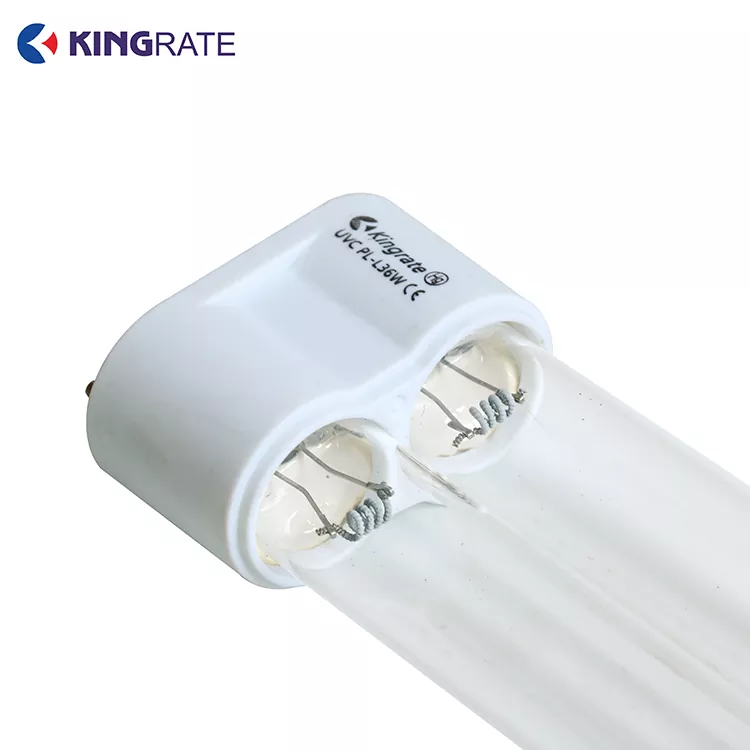

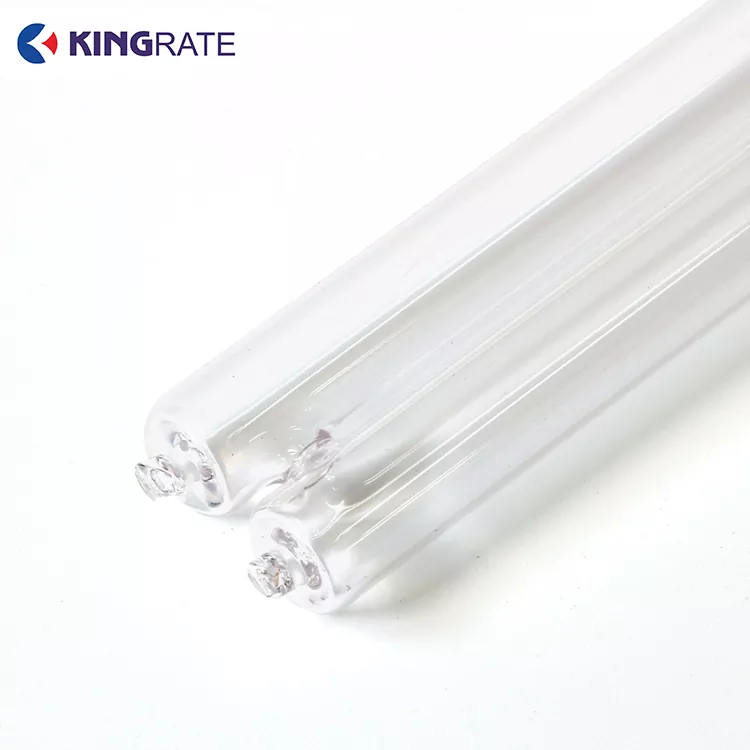

To build durable air purifiers and liquid sanitizers, choosing a trusted China PL-L Series H-Shaped UV Lamp PL-L36W manufacturers network ensures exceptional build quality. Kingrate uses premium quartz to maximize UVC transmittance, lowering annual replacement costs by 25% via a reliable 9,000-hour continuous lifespan.
For compact fully sealed disinfection devices (water purifiers, mini air sterilizers), heat buildup is a core failure risk. Overheated mercury vapor will sharply reduce effective UVC output. Kingrate PL-L36W adopts optimized low-heat plasma structure, stabilizing quartz surface working temperature at 40°C. Even under non-stop 24/7 operation, it maintains stable 120μW/cm² germicidal intensity.
The mid-sized structural balance of the PL-L Series H-Shaped UV Lamp PL-L36W makes it highly versatile for integration into medium-capacity disinfection configurations:
• Commercial Office & Ward Air Purifiers: Deploys within central air-conditioning modules and standalone air disinfectors to minimize the propagation of influenza and seasonal pathogens.
• Residential Water Dispensers & Small Pools: Disinfects incoming municipal or well water, destroying E. coli and microbial threats without imparting chemical odors or tastes.
• Laboratory Apparatus Surface Sanitation: Keeps biosafety hoods, petri-dish filling machines, and clean-bench tools free from cross-contamination between experimental runs.
| Engineering Parameter | Certified Specification | Operational Explanation |
| Electrical Load | 36W rated power, stable 105V operating voltage | Medium power for small-to-medium commercial disinfection |
| Fitting Design | Universal single-ended 4-pin 2G11 base, 410mm tube length | Moderate size balances radiation range and equipment space limit |
| UVC Spectral Output | 120μW/cm² irradiance, pure ozone-free 253.7nm wavelength |
Stable disinfection performance for lab and office scenes |
Standard multi-lamp setups often create excessive physical heat that shortens structural life. Kingrate mitigates this issue through targeted hardware refinement:
• Low-Heat Plasma Configuration: Our PL-L Series H-Shaped UV Lamp PL-L36W engineering allows the lamp to run cooler than conventional high-pressure mercury setups, keeping internal ambient temperatures steady inside enclosed water sterilizers.
• Certified Production Standards: Our automated assembly processes hold full CE, RoHS, REACH, FCC, and ISO9001 badges, protecting global importers against compliance bottlenecks.
A: The quartz glass selected by Kingrate filters out the short 185nm vacuum-UV line which is responsible for ionizing oxygen molecules into ozone, ensuring safe indoor air disinfection without venting toxic gases.
A: Frequent on/off cycling accelerates filament sputtering. If your system requires sensor-driven activation, we advise maintaining a minimum runtime of 30 minutes per cycle to safeguard the internal emission mix.
A: No. Commercial cleaners leave thin chemical films that absorb UVC energy. Always use a clean microfiber cloth dipped in 99% industrial isopropyl alcohol to restore maximum UV transmittance.
Beyond the domestic Chinese market, our overseas business has expanded to numerous countries and regions around the world, with our core overseas markets concentrated in three major areas: North America, Europe, and Southeast Asia. The North American market imposes extremely strict requirements on product quality and certifications. With our comprehensive international certifications including CE, RoHS, REACH, FCC, and ISO9001, we have successfully earned long‑term trust from local customers. The European market emphasizes environmental protection and technological advancement. Our UV products excel in air disinfection, water treatment, and industrial exhaust gas purification, fully complying with the EU‘s stringent environmental regulations. The Southeast Asian market benefits from rapidly growing industrial and infrastructure demands. Our products, with their high cost‑performance ratio and stable performance, are widely used in local aquaculture, water treatment, and municipal disinfection projects. In addition, we are actively exploring emerging markets such as South America and the Middle East, gradually building a global sales network.
