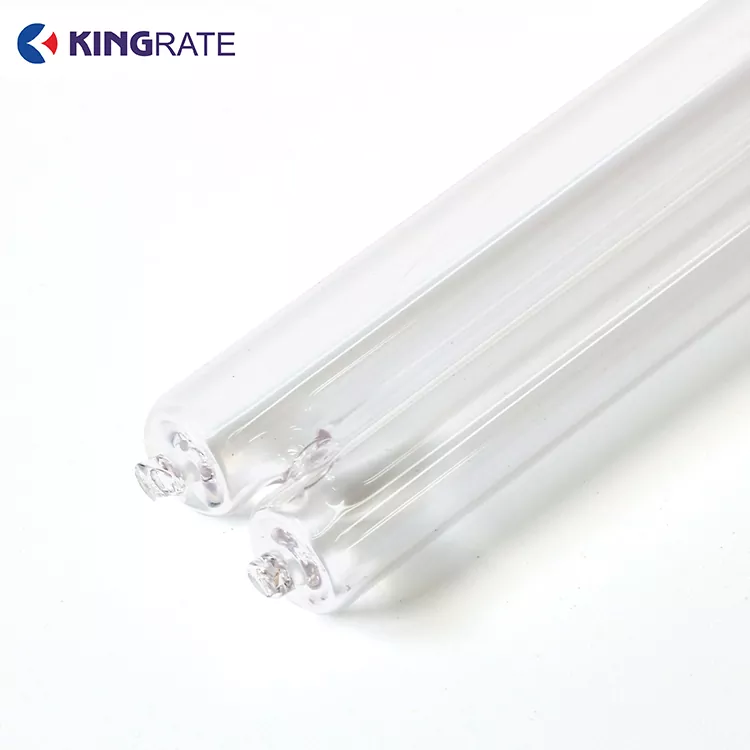

PL-L Series H-Shaped UV Lamp PL-L60W

To establish reliable large-scale air and water disinfection systems, direct sourcing from professional China PL-L Series H-Shaped UV Lamp PL-L60W factory networks is your most cost-effective decision. Kingrate utilizes advanced automated filament structures to deliver a stable 60W power output, providing a 170μW/cm² UV intensity over a 9,000-hour lifespan with less than 30% light decay.

Where Does This 60W Module Excel?

High-volume environments require relentless photon density. The PL-L Series H-Shaped UV Lamp PL-L60W is physically deployed to solve severe biological contamination in heavy industrial layouts:

• Hospital Trauma Rooms & ICU Ducts: Installed inside main air handling units (AHUs). Continuously treats fast-moving airflows to eliminate airborne viruses and prevent cross-contamination in sterile surgical zones.

• Municipal Waste Water Disinfection: Mounted in stainless steel flow channels for secondary sewage treatment. Penetrates high-turbidity water to neutralize fecal coliforms without toxic chemical disinfection byproducts (DBPs).

Technical Advantages & Structural Reliability

Most commercial UV lamps fail prematurely due to loose filaments under regular high-voltage stresses. Kingrate corrects these issues through rigorous factory enhancements:

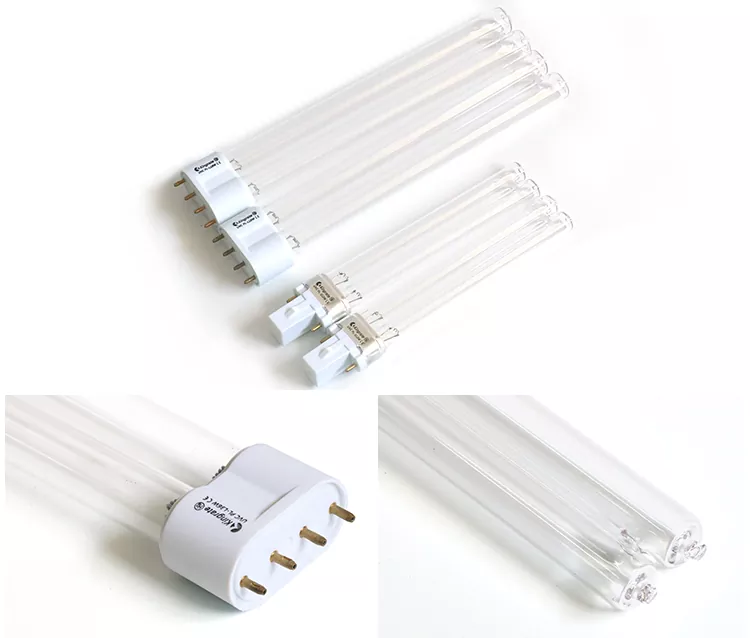

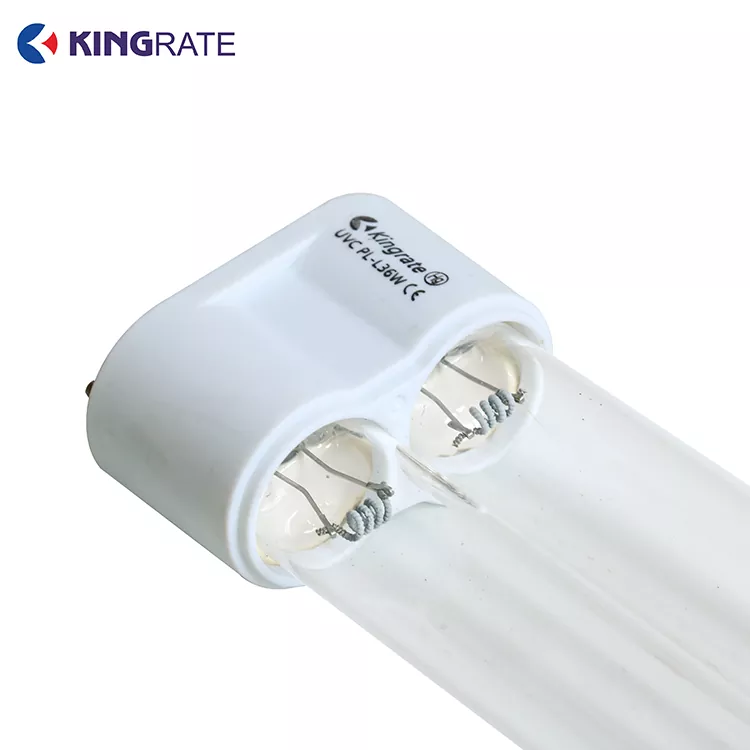

• Standardized 2G11 Component Alignment: The precise engineering of our 2G11 single-ended base avoids loose electrical contacts, reducing maintenance downtime by 25% compared to generic alternative brands.

• Compliance Certification: Backed by ISO9001 quality management systems, each batch carries CE, RoHS, REACH, and FCC certifications, satisfying strict international chemical safety regulations.

Targeted Industry Applications

Standard glass blockades high-energy germicidal bands, but the premium quartz utilized in the PL-L Series H-Shaped UV Lamp PL-L60W maximizes transmission, solving commercial sterilization failures in high-volume settings:

• Hospital HVAC & Upper-Room Air Irradiation: Eliminates airborne pathogens in high-traffic hospital departments and operating rooms, dropping the risk of cross-infection by suppressing floating microbes.

• Medium-Scale Water Purification: Installed inside municipal water dispensers and aquarium filtration plants, killing waterborne bacteria and invasive green algae without heating the water body.

• Industrial Surface Bio-Decontamination: Positioned across fast-moving conveyor belts in food packaging facilities to sanitize sealing films and material containers before automated filling lines.

Technical Parameter Specifications

The structural framework and precise electrical configurations of the PL-L Series H-Shaped UV Lamp PL-L60W are calibrated to ensure continuous, flick-free deployment:

Technical Maintenance FAQ

Q1: What causes slow ignition of PL-L Series H-Shaped UV Lamp PL-L60W in cold HVAC air ducts?

A: UVC low-pressure mercury lamps are sensitive to low ambient temperature. When airflow temperature drops below 15°C, internal mercury vapor pressure reduces and delays arc striking. Equip the matched electronic ballast with a 1.5s minimum preheating current program to stabilize plasma before startup.

Q2: Can this single-ended 60W lamp replace traditional 2-pin linear UV lamps on existing purification racks?

A: Not interchangeable. The 2G11 4-pin single-ended structure has completely different voltage and circuit wiring logic. All electrodes concentrate on one terminal, which simplifies wiring for compact slide-out industrial racks but cannot adapt to 2-pin dual-end lamp circuits.

Q3: How does dust buildup affect the rated 170μW/cm² UV output during long-term operation?

A: Micro organic dust and oil film can absorb up to 50% effective UVC energy. For industrial air and surface disinfection equipment, wipe the quartz tube with lint-free cloth dipped in pure denatured alcohol every 90 days to retain standard sterilization intensity.

KINGRATE has a dedicated R&D team and a specialized production facility for UV lamps, equipped with multiple production lines and a large number of automated equipment, enabling large-scale, standardized manufacturing. The complete assembly line consists of the following core machines, each playing a specific role in ensuring lamp quality:

Main Production Equipment

Precisely fabricate lamp filaments with consistent shape, turn count, and resistance, ensuring uniform electrical performance and luminous efficiency from the very start, while minimizing batch-to-batch variation.

Tube clamping machines

Fuse the quartz tube with electrodes and lead wires at high temperatures, creating a hermetic seal. Automated control of temperature and pressure effectively prevents leaks or cracks, maintaining the necessary vacuum level throughout the lamp‘s lifespan.

Welding machines

Perform spot welding for filament leads and internal components. The welding process is stable and reliable, producing strong joints with low resistance, ensuring smooth current transmission and extending lamp service life.

Exhaust machines

Evacuate air and impurities from the sealed lamp tubes, then fill with a precise mixture of inert gases (e.g., argon, neon). This process directly determines the gas purity and pressure inside the tube, which are critical factors affecting UV output intensity and ignition performance.

Aging machines

Electrically age finished lamps under simulated operating conditions to stabilize performance and screen out early failures. Every batch undergoes thorough aging tests, ensuring reliability and consistency before shipment.

In addition, the production line is supported by auxiliary equipment for automatic conveying, inspection, packaging, etc., forming a complete modern assembly system. This manufacturing platform can flexibly accommodate various specifications and order volumes, while providing a solid foundation for continuous new product development. We remain committed to our design philosophy Fresh Air & Clean Water Come from Our Elaborate and Diligent Maintenance and will keep refining our processes to protect the environment and public health.
