To build spaces with low secondary infection risks, sourcing directly from a specialized China U-Shaped UV Lamp factory ensures optimal system integration. Kingrate’s specialized manufacturing lines utilize precise gas-filling parameters to achieve an operating noise level under 30 decibels within dynamic air purifiers. Our strict geometric alignment prevents structural glass stress, offering an extensive lifespan that drastically cuts down on commercial service calls and replacement costs for facility maintenance teams.

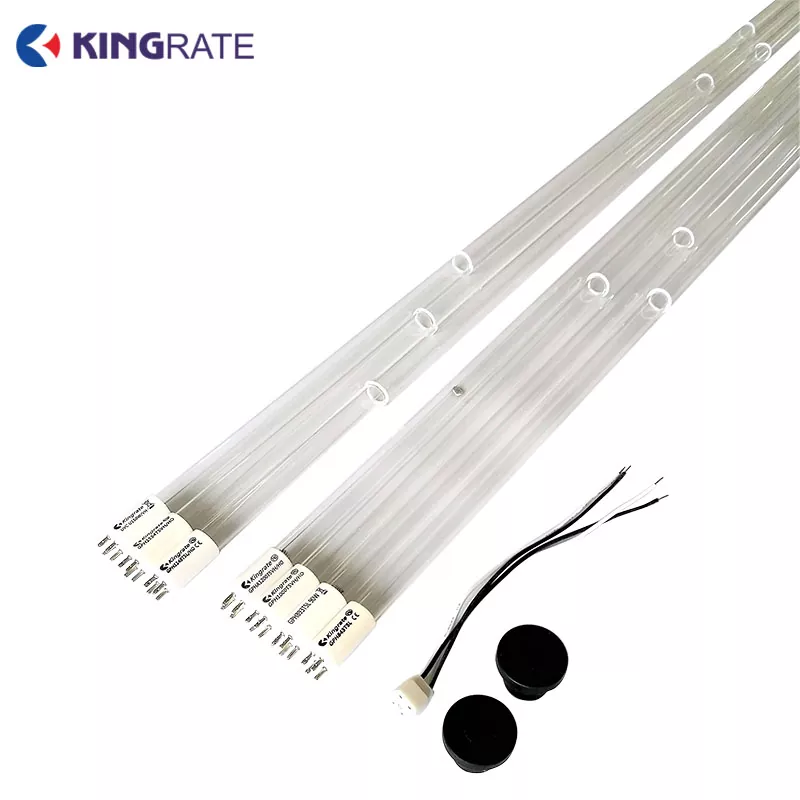

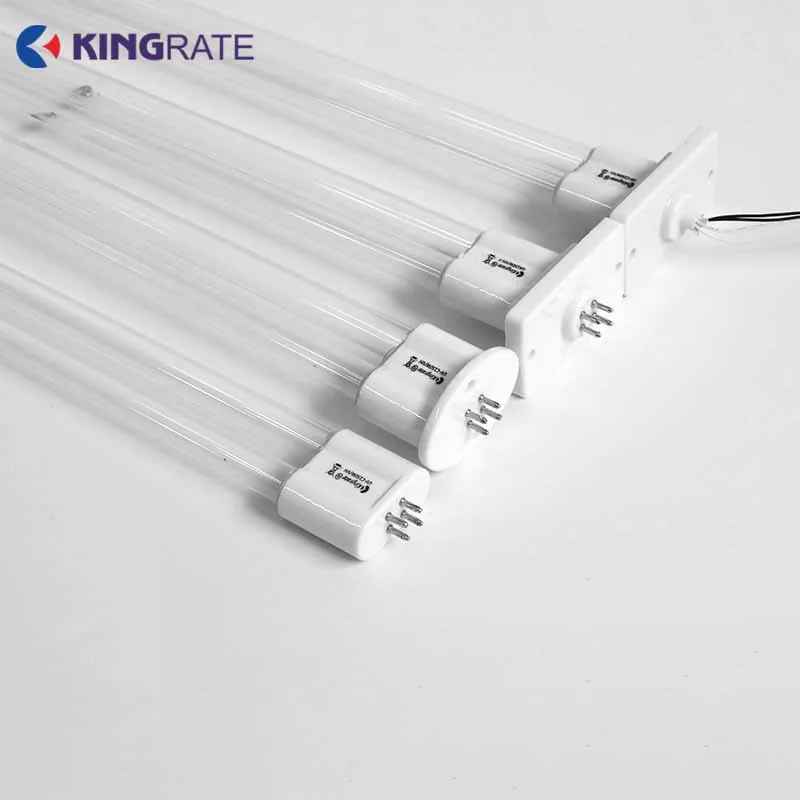

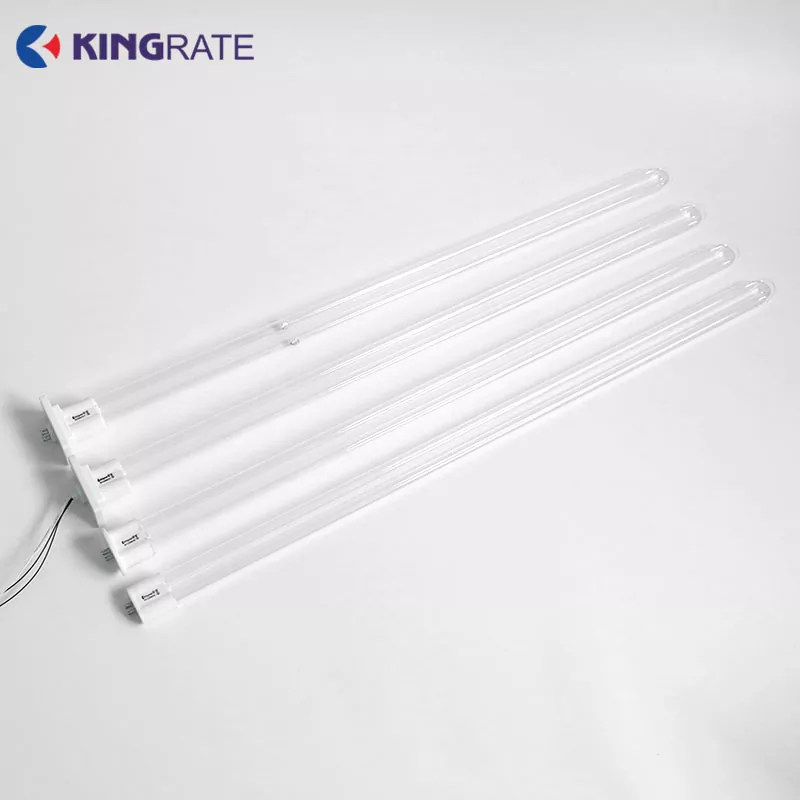

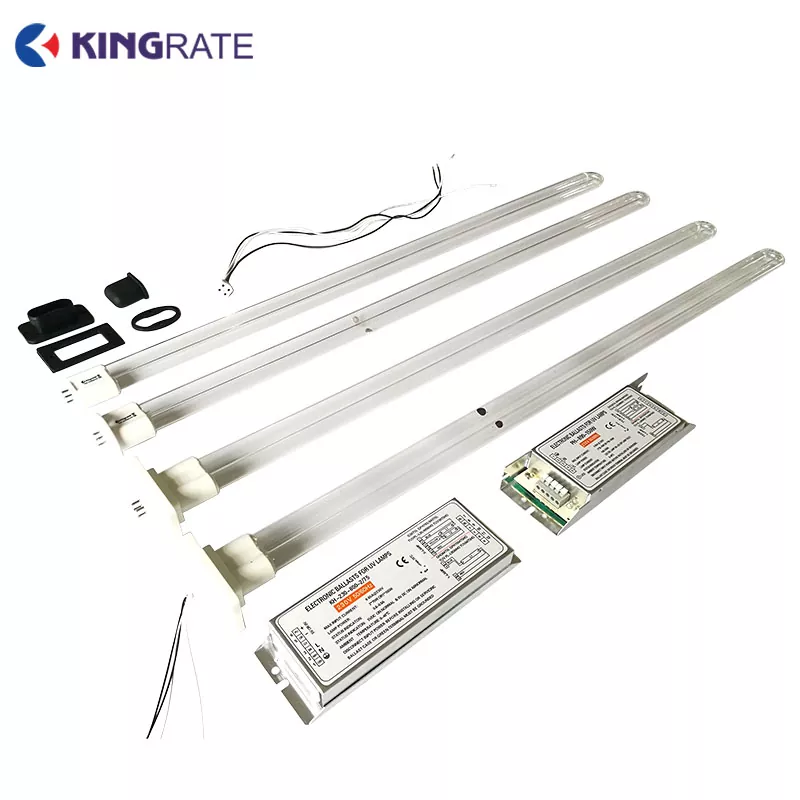

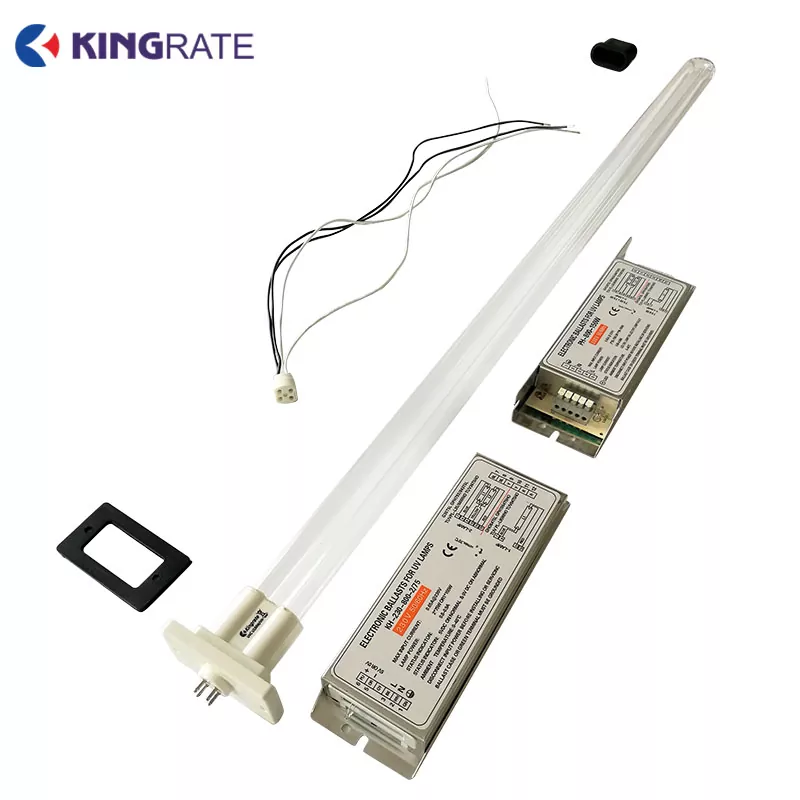

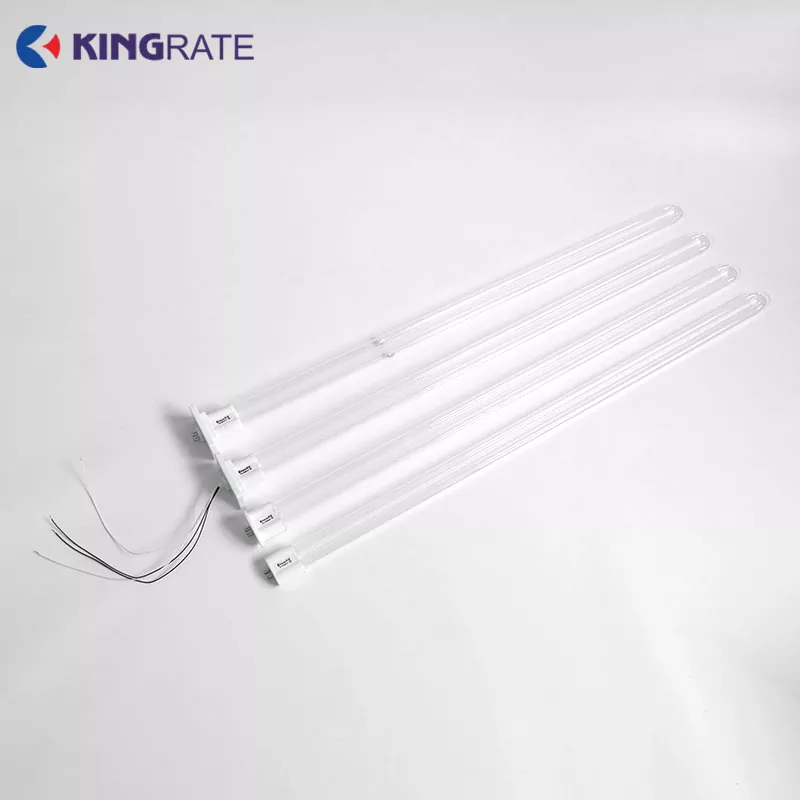

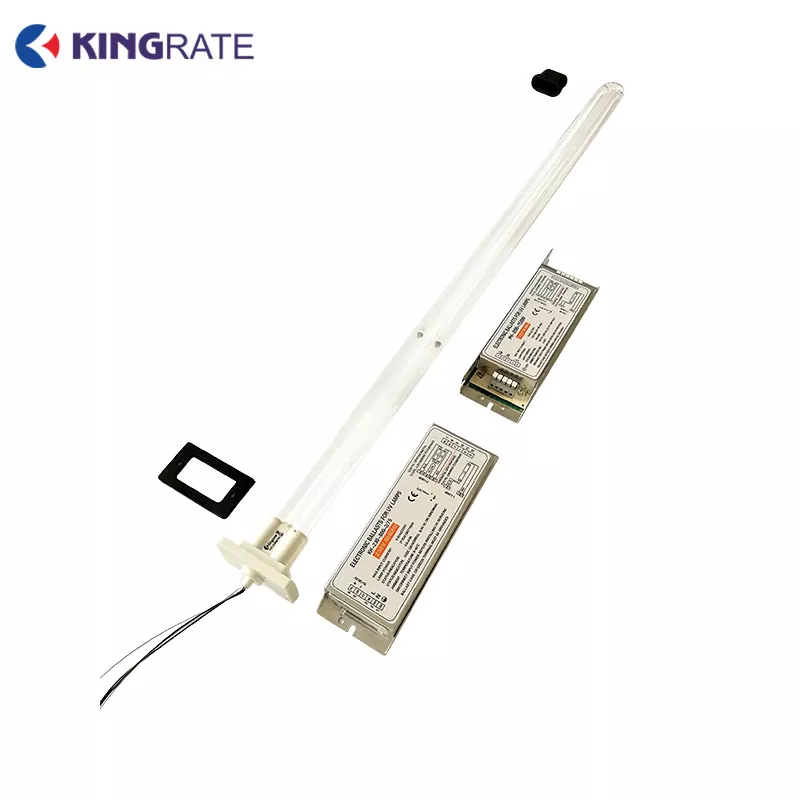

Traditional linear germicidal tubes often force engineering teams into an expensive trade-off: either compromise on the overall sterilization dosage or increase the physical dimensions of the equipment enclosure to fit longer lamps. This geometric constraint leads to higher sheet-metal manufacturing costs, bulky retail packaging, and increased international freight overhead.The U-Shaped UV Lamp directly addresses this design challenge by folding the physical arc path perfectly in half. By utilizing a specialized computerized gas-heating bending process, we deliver identical electrical wattage and optical UVC output within exactly half the physical linear length. This enables system designers to downsize air purification cabinets by up to 40% while preserving a 99.9% terminal kill rate
To ensure structural integration into U-Shaped UV Lamp, our manufacturing tolerances are held to strict millimetric standards:
| Engineering Parameter | Industrial Standard Specification | Kingrate Premium Configuration |
| Spectral Emission Peak | Variable (250nm - 260nm) | Locked 253.7nm (Ozone-Free) |
| Glass Material Grade | Recycled / Low-grade Soft Glass | High-Purity Synthetic Quartz |
| Initial UVC Transmittance | ~70% | > 85% |
| Tube Exterior Diameter | Variable ±1.0mm variance | Standard 12mm (±0.2mm tolerance) |
| End-of-Life Light Decay | > 40% at 5,000 Hours | < 30% at 9,000 - 13,000 Hours |
| Cathode Structure | Single-Wound Filament | Reinforced Triple-Carbonate Coated |
Every U-Shaped UV Lamp undergoes a rigorous 4-step quality assurance framework before final export packaging:
• Vacuum Leak Mass Spectrometry: Ensures the structural integrity of the quartz-to-metal seals.
• High-Voltage Ignition Surge Test: Verifies instant-start capabilities under variable electrical loads.
• Spectroradiometric Output Calibration: Confirms that peak emission remains locked at 253.7nm.
• 2-Hour Continuous Burning Aging: Eliminates infant mortality defects prior to international shipping.
• High-Traffic Educational Desks & Podiums: Integrated into desktop air sanitizers for school classrooms to reduce airborne cross-contamination without distracting students or teachers.
• Medical Consultation Clinics: Installed inside wall-mounted upper-room air irradiation units to continuously disinfect air currents above patient seating areas.
• Corporate Modular HVAC Systems: Positioned directly over terminal HEPA filters to destroy trapped mold spores before they can colonize the ventilation ductwork.

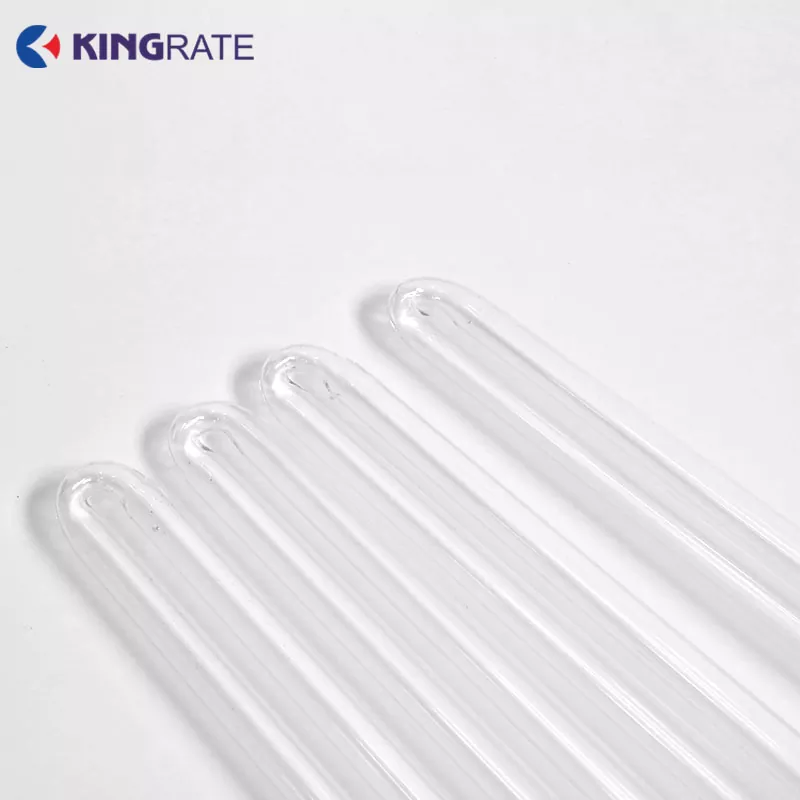

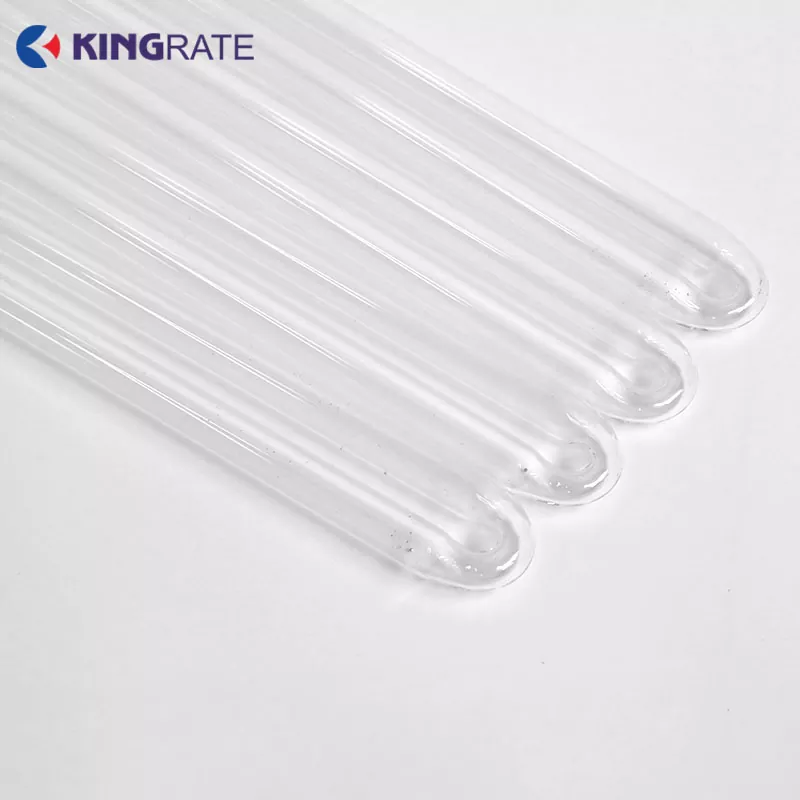

A: In standard manufacturing, bending glass manual pulls the outer radius thin, creating a thermal hot spot that causes structural cracking under constant heat cycles. Kingrate utilizes automated, tension-controlled glass bending benches that feed extra material into the outer radius during the heating phase, ensuring uniform wall thickness and thermal dissipation across the entire curve.
A: This U-Shaped UV Lamp operates efficiently in relative humidity levels up to 95%, provided the electrical connections at the base are fully sealed against condensation. Because the quartz glass surface is non-porous and chemically inert, moisture film buildup will slightly refract the light path but will not degrade the physical material or cause thermal shocking.

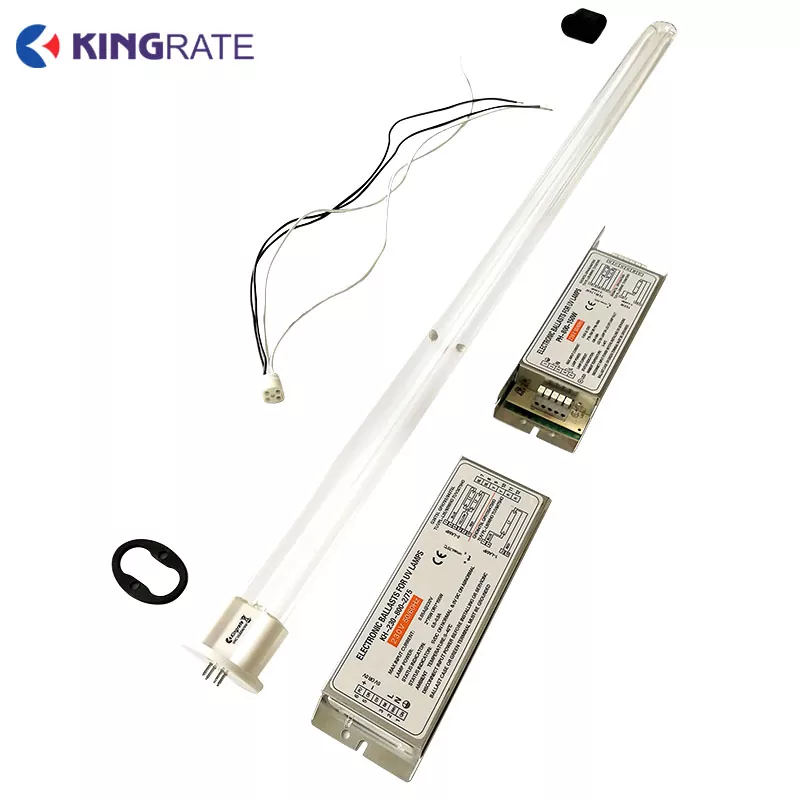

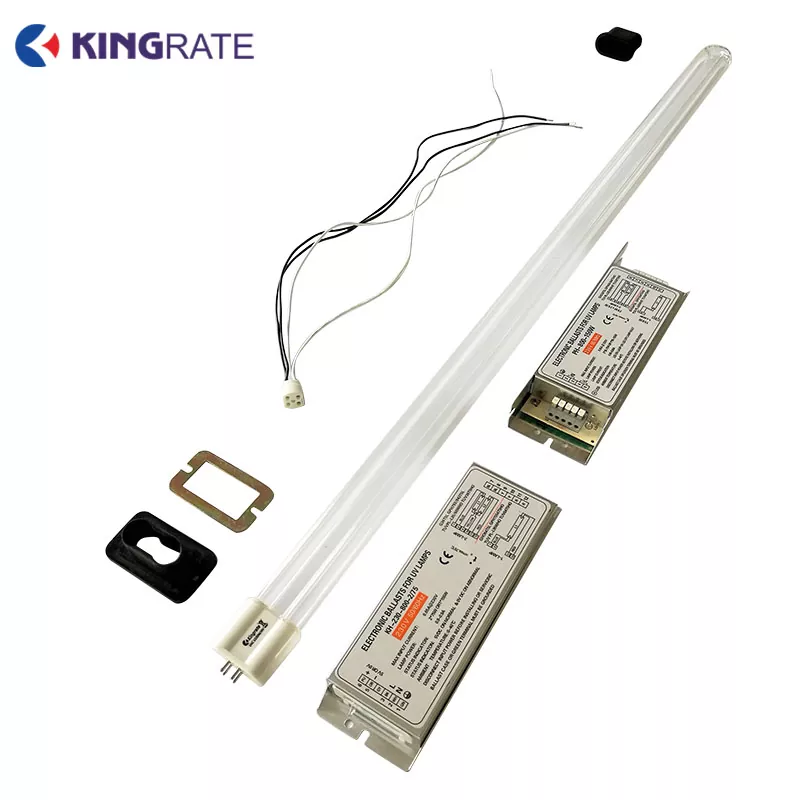

A: The U-Shaped UV Lamp itself has no moving parts; acoustic noise in UV systems is caused by electrical resonance (buzzing) inside low-quality cathodes or loose internal support wires. By using precision-wound filaments anchored by heavy-duty nickel-plated support leads, Kingrate eliminates mechanical micro-vibrations, ensuring completely silent operation when paired with a high-frequency electronic ballast.
Kingrate offers comprehensive product consultation, OEM/ODM customization, and professional technical support services. Whatever your needs may be, our team is always ready to provide you with efficient and accurate responses.
